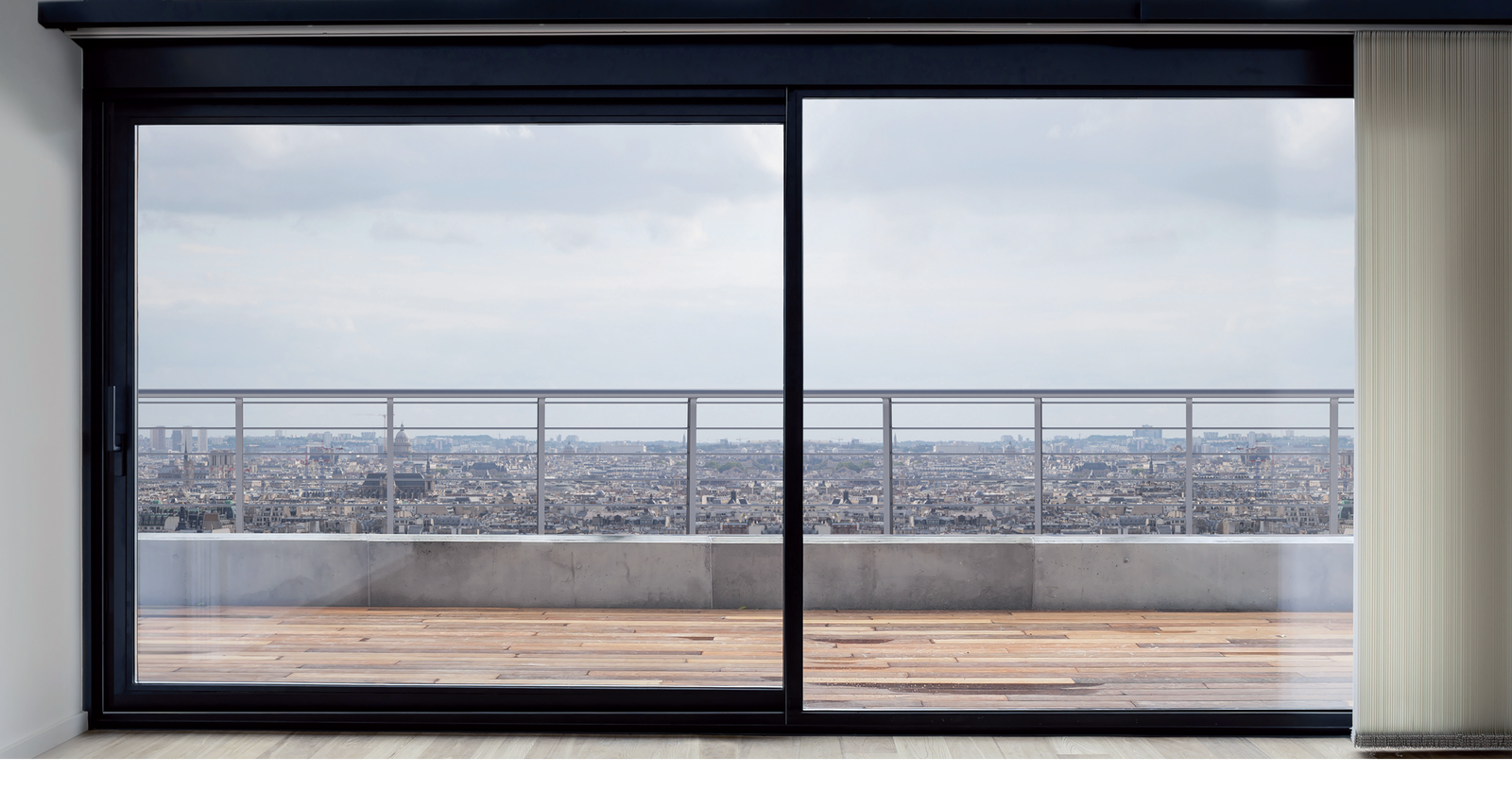

4600 LIFT & SLIDE HI SYSTEM
4600 LIFT & SLIDE HI SYSTEM
Description
A new elevable sliding door system with Thermal break presents the highest thermal insulation in the range of sliding doors with the best transmittance values.
Possibility of large gaps of sash, it´s an excellent solution for enclosing large gaps, allowing sashes up to 3.35 meters (width) x 3.20 meters (height) and assures interior luminosity without giving up to maximum thermal and acoustic values
• It has an excellent energy efficiency:
window transmittance from 0,9 (W/ m2 K)*.
• Noise protection: up to 43 dB acoustic reduction.
• Maximum tightness: CLASS 9A,
which means during 55 minutes, total affluent of 3300 liters and wind velocity of 114 km/h, there´s no water
intake.
CATEGORIES ACHIEVED AT TEST CENTRE*
Air permeability CLASS 4 (max)
Water tightness CLASS 9A
Wind resistance CLASS C5 (max)
OPENING POSSIBILITIES
Sliding of 2, 3, 4 & 6 sashes.
Possibility of 1 rail (1 sash +1 fixed light).
Possibility of 3 rails.
